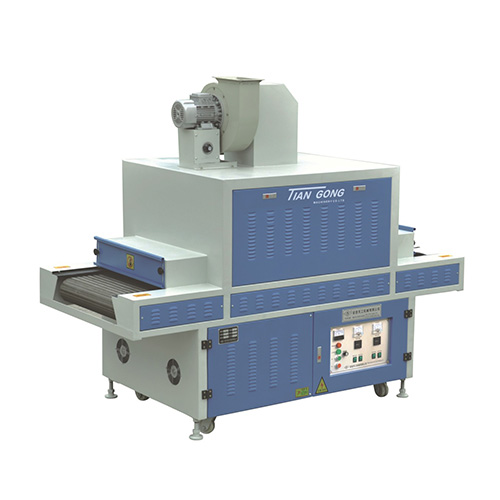

Old Style Dual-lamp UV dryer

Product Details：

Main features：

1. Instant drying: Shorten the coating process time greatly without the waiting time for drying.

2. Match with the coating machine directly: Thic machine can be connected to a roller coating machine or curtain coating machine, The finished product can be dried directly after coating and without the hassle of transporting.

3. Increase the hardness and brightness of the coated product surface.

4. Widely range of applications: Drying for Wood, plywood, furniture, steel palte, building materials, optic, leather after UV coating.

600#

Effective processing width 600mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Light tube power 6kw*2

Delivery power 0.4kw

Outlook size L*W*H 2300*1050*1600mm

1000#

Effective processing width 1020mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Light tube power 8kw*2

Delivery power 0.75kw

Outlook size L*W*H 2300*1350*1800mm

1300#

Effective processing width 1300mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Light tube power 9.7kw*2

Delivery power 0.75kw

Outlook size L*W*H 2300*1650m1800mm
