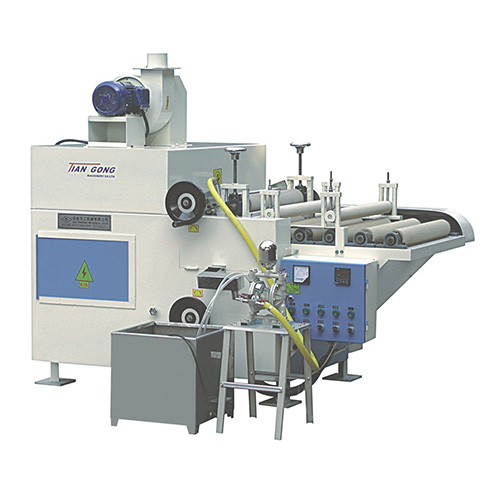

Back Coating Machine

Product Details：

Main Features：

1. Coating is evenly by the use of frequency conversion, saving time and effort.

2. Equipped with two sets UV coating rollers, It can be used simultaneously or separately.

3. Easy to replace the UV coating rollers by unscrewing the set screw of it, saving time and effort.

4. UV lacquer can be reclaimed quickly and easily.

5. Feeding speed can be adjusted with the coating speed, near synchronous line speed.

6. Suitable for coating wood, plywood, plastic, windows, rubber sheet and other square board, rectangleboard, etc.

TG-520

Coating speed 0-30m/min

Effective coating width 420mm

Coating wheel size F205x520mm

Motive power 2HP

Voltage 380 V (customer requirements)

Machinery size 1800x1600x1200mm

Pack size 1900x1700x1400mm

N. W. /G. W. 1200kg/1600kg

TG-600

Coating speed 0-30m/min

Effective coating width 600mm

Coating wheel size F205x720mm

Motive power 2HP

Voltage 380 V (customer requirements)

Machinery size 1800x1800x1200mm

Pack size 1900x1900x1400mm

N. W. /G. W. 1400kg/1800kg

TG-1000

Coating speed 0-30m/min

Effective coating width 1000mm

Coating wheel size F205x1000mm

Motive power 3HP

Voltage 380 V (customer requirements)

Machinery size 1800x2100x1200mm

Pack size 1900x2000x1400mm

N. W. /G. W. 1500kg/2000kg

TG-1300

Coating speed 0-30m/min

Effective coating width 1300mm

Coating wheel size F205x1400mm

Motive power 3HP

Voltage 380 V (customer requirements)

Machinery size 1800x2500x1200mm

Pack size 1900x2600x1400mm

N. W. /G. W. 1600kg/2000kg
